META STEEL

Meta-6-banches

These straight tools can be produced with wooden or metal molding face, are ideal for raw concrete walls, sub-meanly of house which resist to Earthquake-resistant standard, for residential and industrial buildings, with a high security level for the workers and a high productivity level.



The molding face is made of steel of 5mm thickness or with multiply wood of 15mm thickness..

Acceptable pressure is:  6 or 7 Tons/m²  .

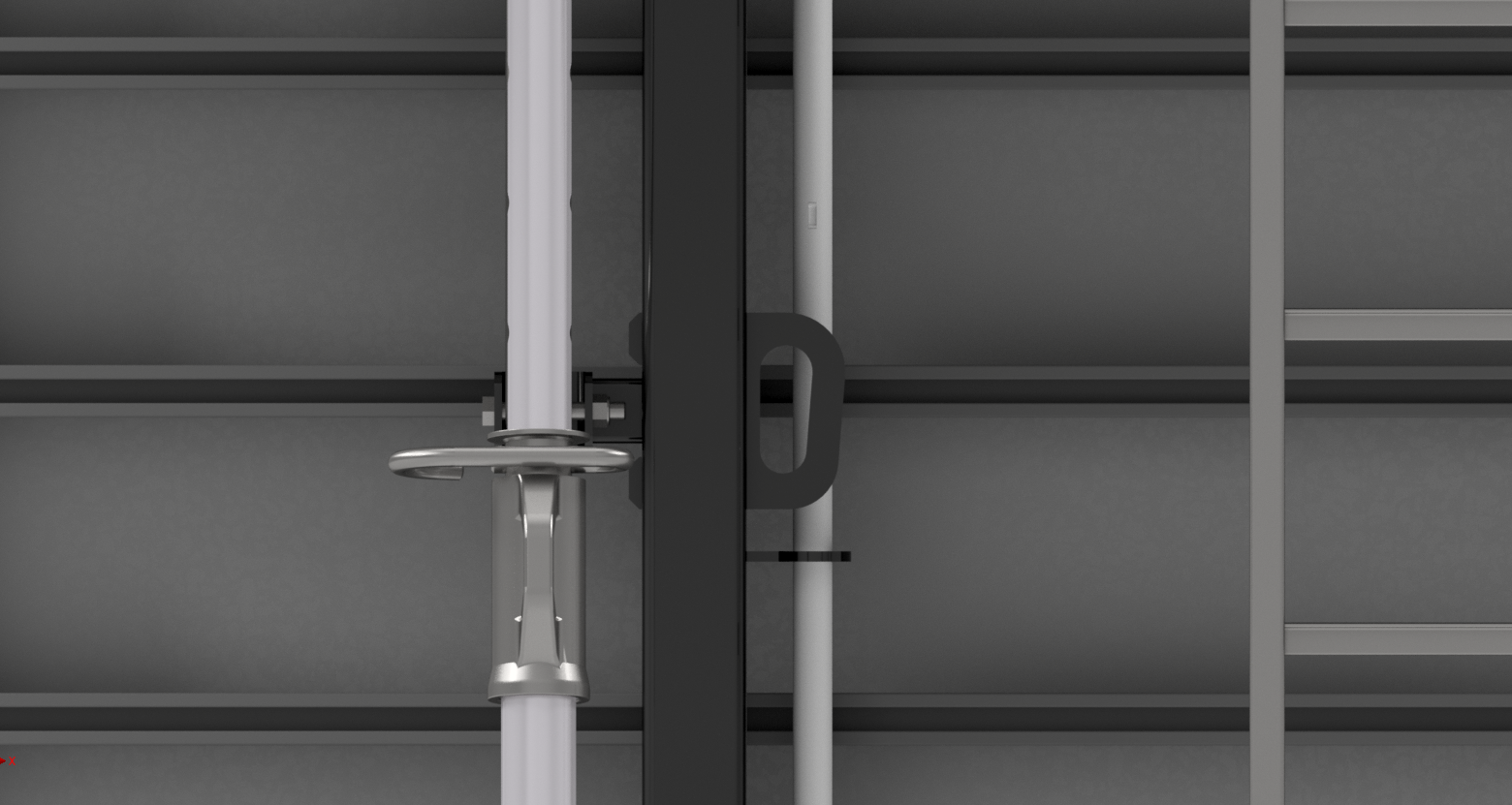

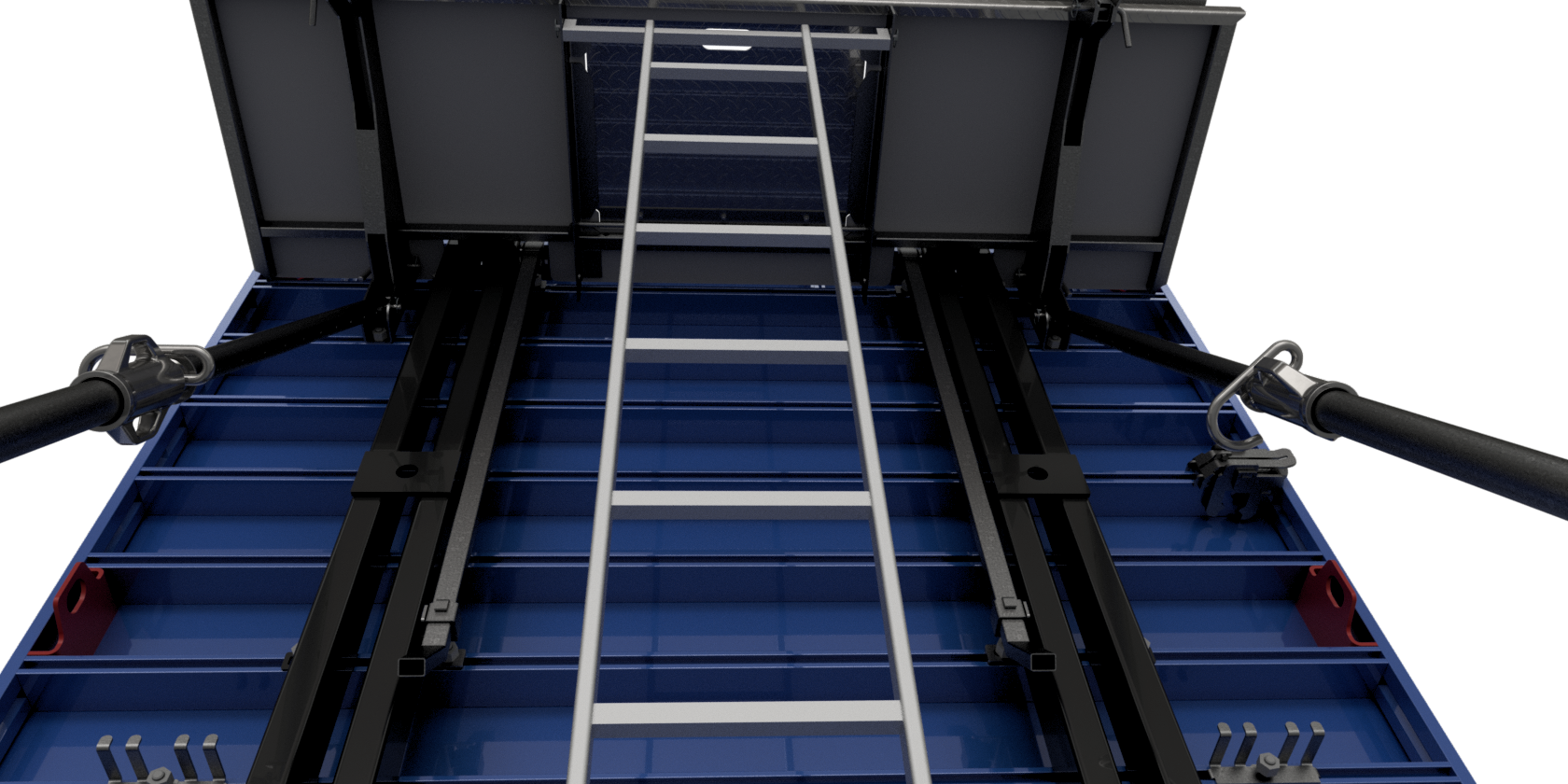

The juxtaposition assembly is made by integrated crowbars and for superimposing by integrable crowbars. The 3 meters formworks have there Foldable integrated galvanized safety platform. The tools of 1.50 meter high can receive a galvanized safety platform. The dimensions of the tools are: large = 0.50, 1.00, 1.50 and 2.00 meters, high =  0.50, 1.00, 1.50, 2.75 and 3.00 meters. The weight of the tools is approximately = 145 kg/m²

Documentation technique
For more informations, use instructions, please contact us.
