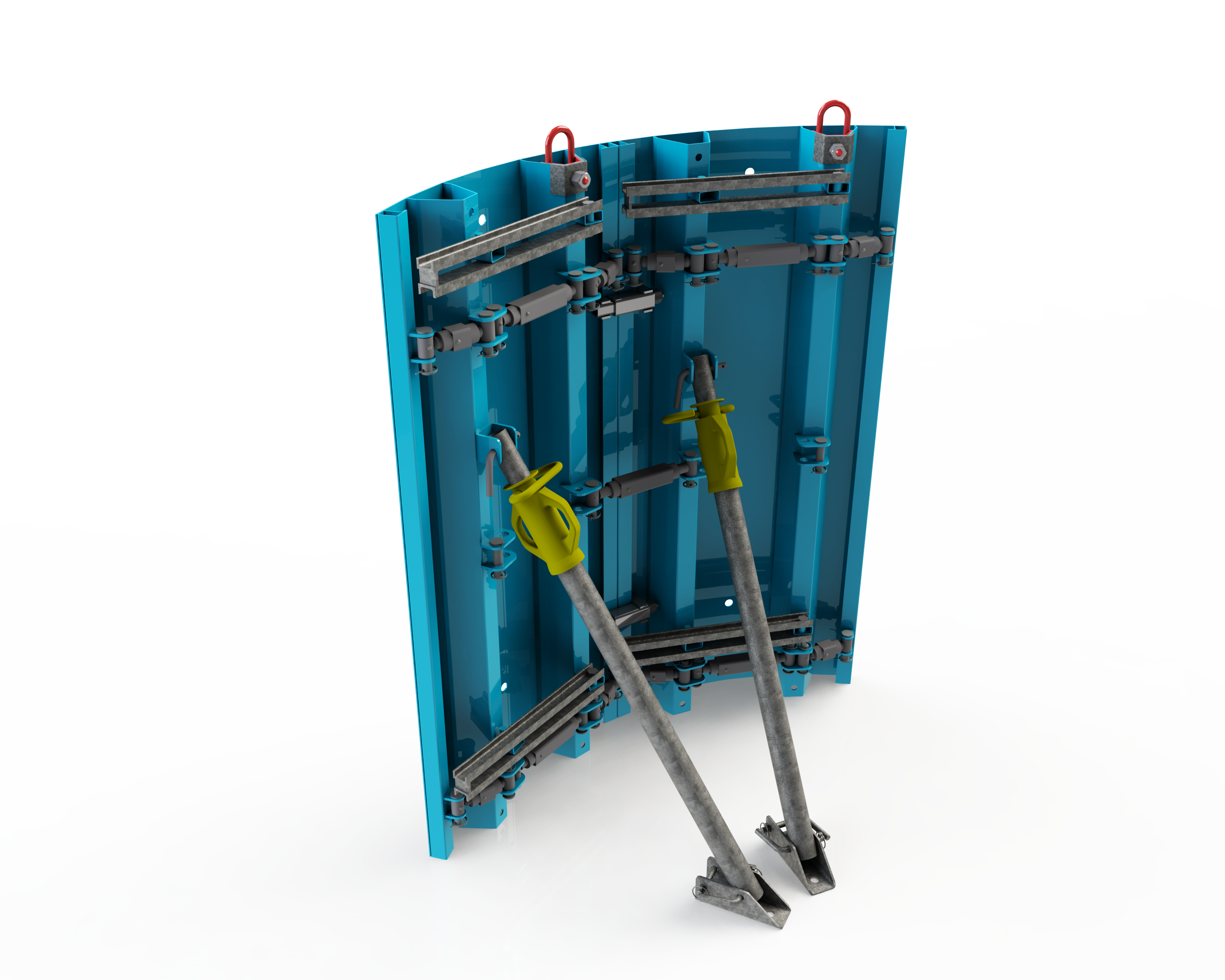

The rage of radius of these tools is: minimum internal radius 1 meter to infinity. The molding face is made of steel of 3mm thickness. Acceptable pressure is:  5 Tons/m²   with use of stalk of tightening of Ø17mm. The juxtaposition assembly is made by integrated crowbars and for superimposing by special screwed plates. The dimensions of the tools are: large = 0.70 et 0.74 meter, high = 0.50, 1.50 meter. The weight of the tools is approximately = 75 kg/m²

Documentation technique
For more informations, use instructions, please contact us
