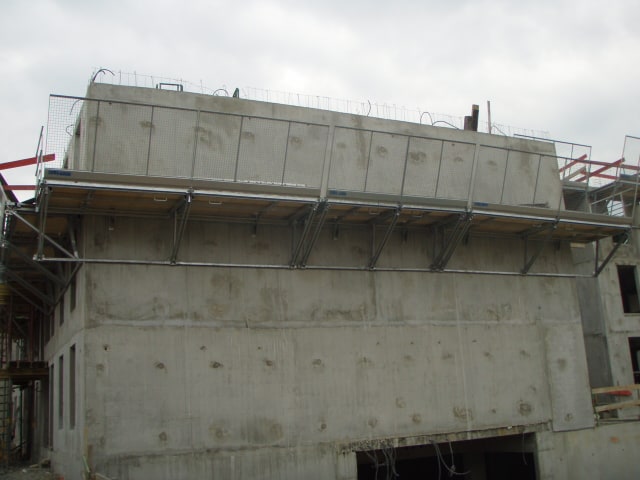

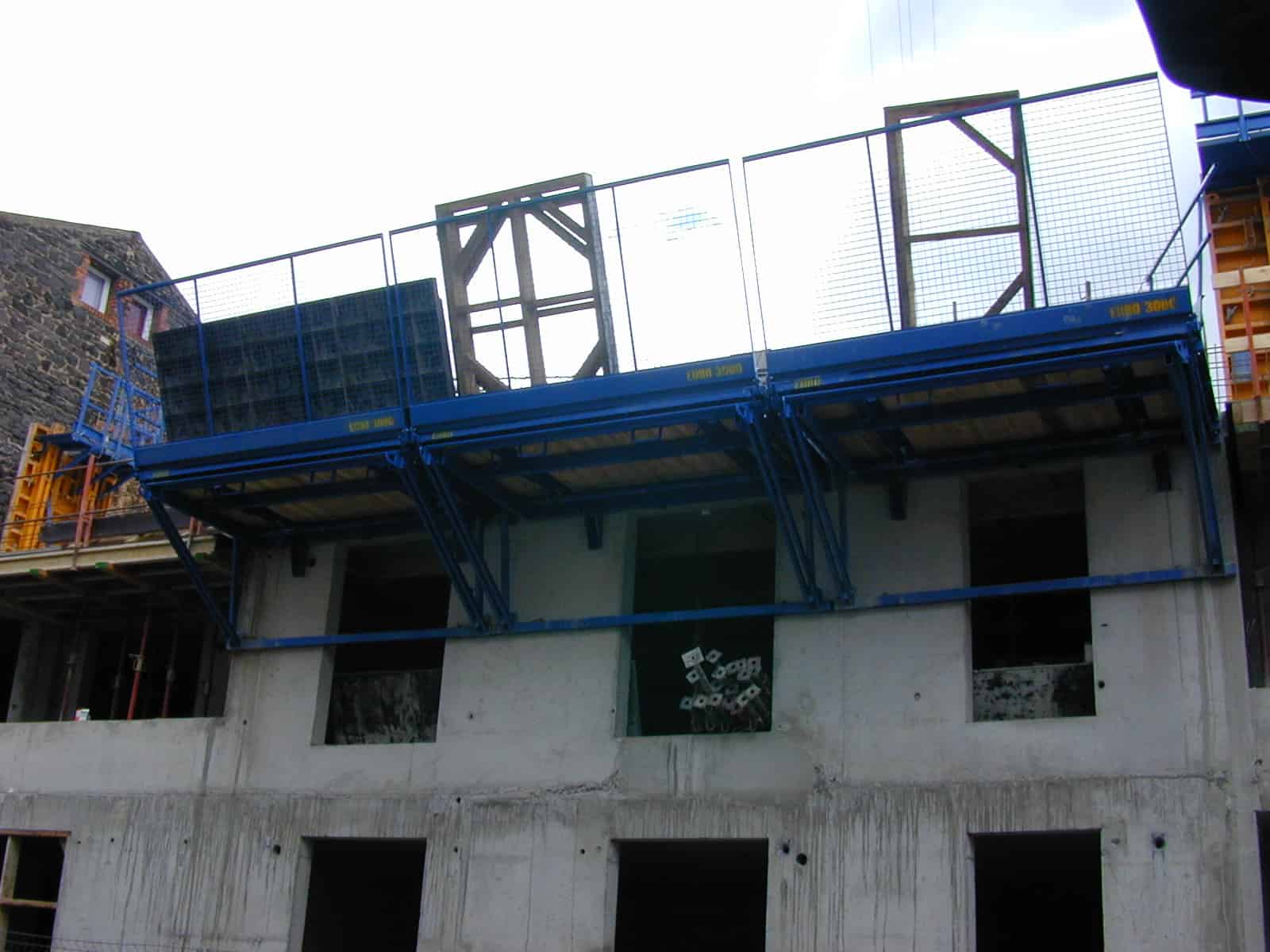

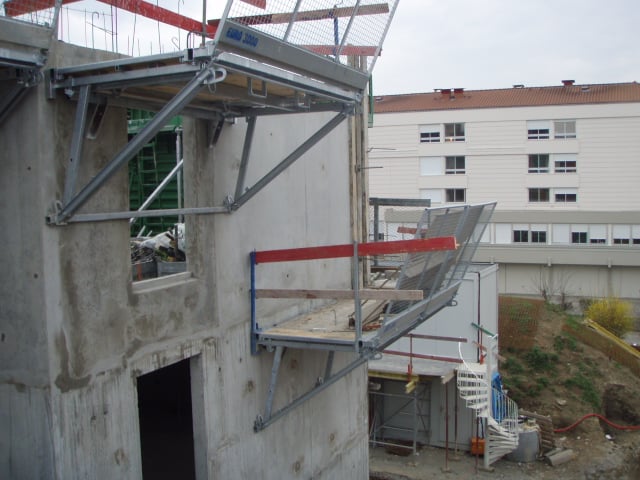

These platforms are used to support the formworks to build concrete walls for buildings for example.

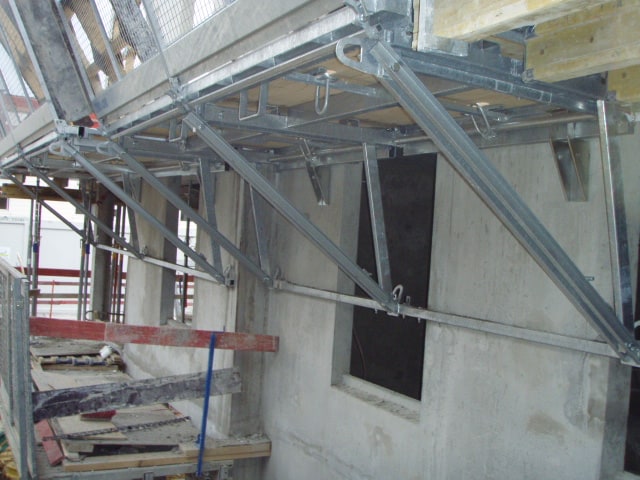

The frames of the platform are made of galvanized steel and the floor is made of multiply wood thickness=40mm providing a high résistance to climatic conditions. The deployment and the locking are automatic. These platforms are very slim when there are closed, They can be transported by 8 parts high on a truck, the thickness when closed is= 0.30 meter and large = 2.30 meters. The implementation on the wall is done by spare fixing system with thread stalk Ø24 and nut to be struck. Lateral extension steel sheets provide secure junctions and quick length adjustments. The dimensions of the platforms are: large = 1.70 meter with extension possible to 2.50 meters, Length = 1.50, 2.00, 2.50, 3.00 and 4.00 meters.

Documentation technique
For more informations, use instructions, please contact us.
